HIKVISION Managed switch DS-3E1518P-SI, 16x PoE & 2x SFP ports, 1000Mbps

Το switch της Hikvision επεκτείνει το δίκτυο σας με 16x θύρες δικτύου PoE και 2x θύρες SFP με ταχύτητες 1000Mbps. Είναι ιδανικό για χρήση με συστήματα ασφαλείας, συναγερμούς, κάμερες κ.λπ.

-16x gigabit PoE ports and 2x gigabit fiber optical ports
-IEEE 802.3at/af standard for PoE ports
-Network topology management, alarm push, network health monitor.
-6 KV surge protection for PoE ports
-AF/AT camera can reach up to 300 m in extend mode
-PoE watchdog to auto detect and restart the cameras that do not respond
-Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on

Τεχνικά χαρακτηριστικά
PoE Power Supply
PoE Standard IEEE: 802.3af, IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: PoE: Ports 1 to 16
Max. Port Power: Port 1 to 16: 30 W
PoE Power Budget: 225 W

Network Parameters
Port Number: 16x gigabit PoE port and 2x gigabit fiber optical port
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode: Store-and-forward switching
Working Mode: Standard mode (default), Extend mode
MAC Address Table: 8 K
Switching Capacity: 36 Gbps
Packet Forwarding Rate: 26.784 Mpps
Internal Cache: 4.1 Mbits

Software Function
Device Maintenance: Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Configuration: Port rate configuration, flow control, and ports enabling
Long Range: Up to 300 m transmission
PoE Configuration: PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond. PoE enabling: Support
Port Rate-Limiting: Rate-limiting for ingress and egress ports
Storm Control: Storm control of unknown unicast, multicast and broadcast
Port Mirroring: Support
Link Aggregation: Static link aggregation supported
Port Isolation: Ports in isolation group cannot communicate with each other.
QoS: WRR and SP scheduling and port priority
VLAN: 4094 VLANs
STP: STP and RSTP protocols
SNMP: SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
LLDP: LLDP protocol supported for port configuration, global configuration and neighbor discovery

General
Shell: Metal material
Net Weight: 2.735 kg

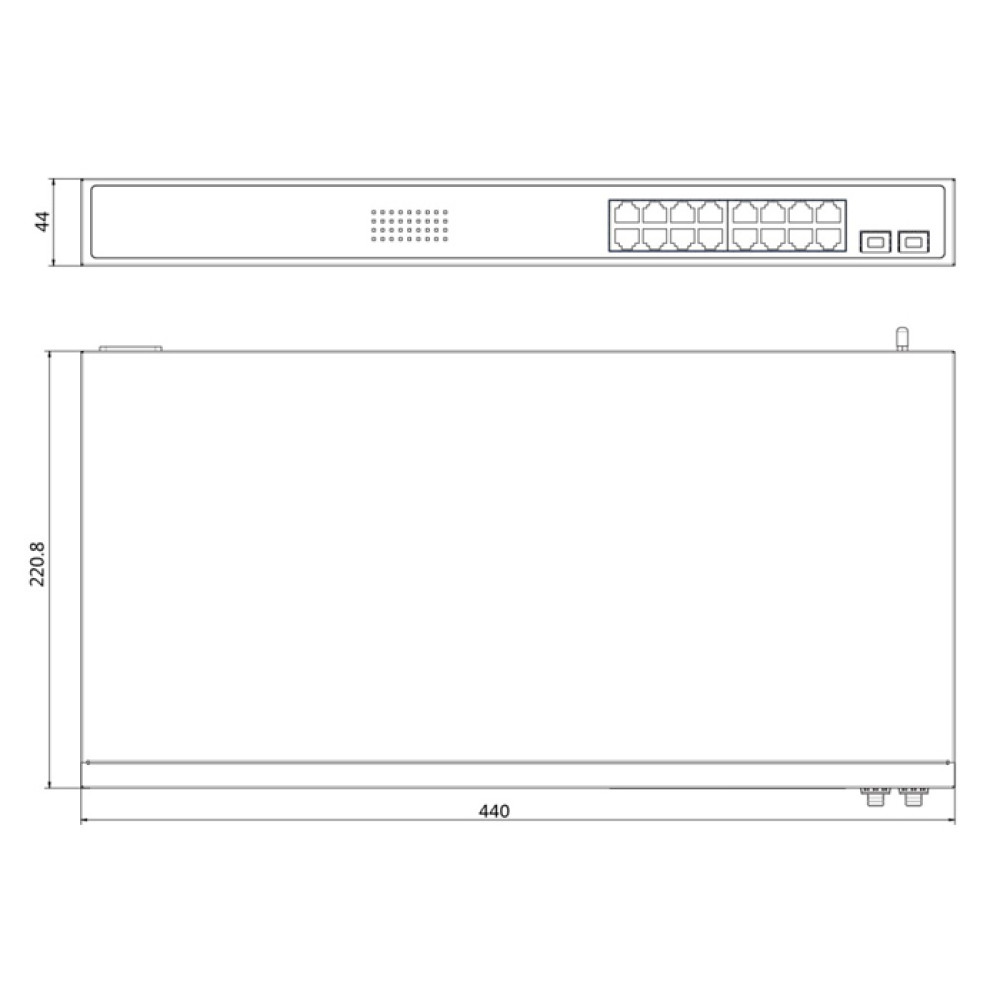

Dimension (W ? H ? D): 440 x 44 x 220.8 mm
Operating Temperature: -10 °C to 55 °C
Operating Humidity: 5% to 95% (no condensation)
Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A. 250 W
Max. Power Consumption: 250 W
Power Consumption in Idle: 25 W

Περιεχόμενα συσκευασίας
Switch
AC power cord
2x L-shaped bracket
4x screw
Quick start guide
